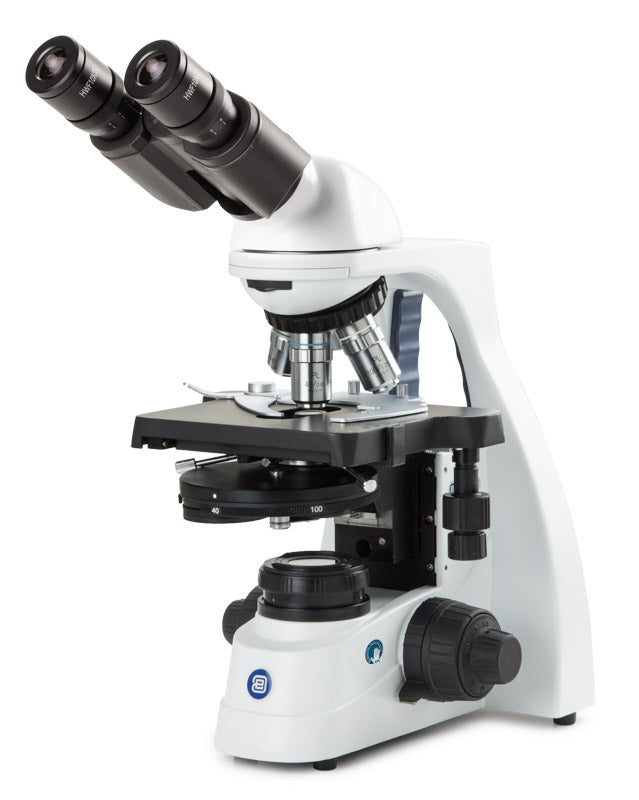

Binocular Microscope bScope BS.1152-PLPHi
SKU
BS.1152-PLPHi
- Regular price
- € 1.946,89
Excl. VAT: €1.609,00
- Regular price
- € 1.946,89
Excl. VAT: €1.609,00
- Free shipping in the EU4-10 working days
- Secure paymentCard, PayPal, Klarna or bank transfer
- 15-day returnsWith prior authorisation
School, university or company?
Request a quote: choose the quote option at checkout, or write to us.
hola@letscopes.com · +34 93 715 21 18
bScope
The bScope is a robust, compact and competitively priced microscope, designed for intensive use in schools, universities, small laboratories and veterinary applications. The BS.1152-PLPHi is the binocular phase contrast version: PLPHi plan phase objectives 10x, 20x, S40x and S100x oil immersion, Zernike condenser and 3 W NeoLED Köhler illumination. Its ergonomic design, with low-positioned focus and stage controls, reduces fatigue during long sessions.
Technical specifications
- HWF 10x/20 mm eyepieces
- Siedentopf binocular head with 30° inclined tubes, interpupillary distance from 48 to 76 mm and dioptre adjustment on both tubes
- Inverted quintuple nosepiece on ball bearings
- PLPHi plan phase objectives 10x, 20x, S40x and S100x oil immersion, infinity corrected (IOS), for phase contrast
- All optics with anti-fungus and anti-reflection coating for maximum light transmission
- Coaxial coarse and fine focusing with 180 divisions: precision 1.1 µm, 0.2 mm per revolution, total travel of approx. 19 mm and friction adjustment
- Plain rackless stage of 131 x 152/197 mm with rackless mechanical stage of 75 x 36 mm
- Height-adjustable Zernike condenser, N.A. 1.25, with iris diaphragm and filter holder
- 3 W NeoLED Köhler illumination with internal 100-240 V power supply (CE)
- Includes mains cable, dust cover and 5 ml of immersion oil in a polystyrene case; supplied without rechargeable AA batteries
