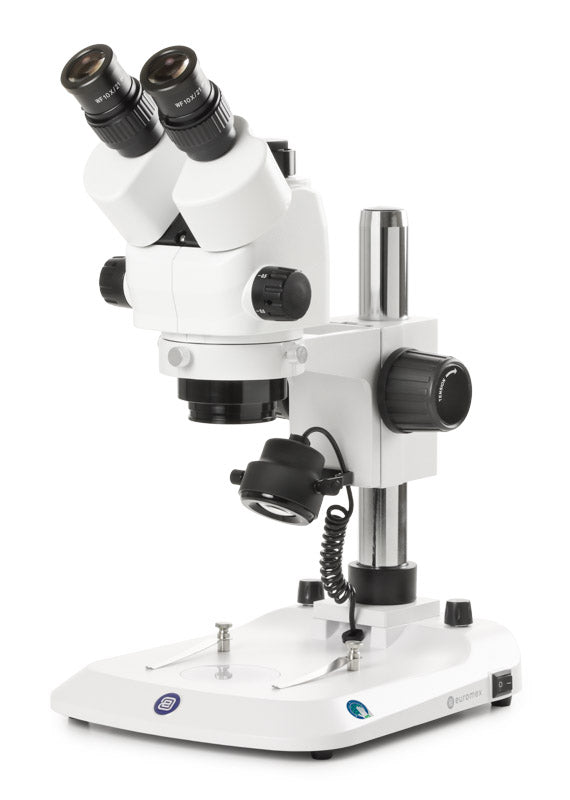

StereoBlue SB.1703-P Trinocular Stereo Microscope

StereoBlue

The SB.1703-P is a trinocular stereo microscope from the Euromex StereoBlue EVO range, designed for laboratories and higher education, and useful for biologists, entomologists, geologists, jewellers and dental technicians. Its 0.5x to 5.5x zoom objective delivers 5x to 55x magnification with a 100 mm working distance, and it is mounted on an ergonomic pillar stand with separately adjustable incident and transmitted LED illumination. The trinocular port allows you to add a camera to document your observations.

Technical specifications

• Pair of WF 10x/21 mm widefield eyepieces with eyecups
• Trinocular head with 45° inclined tubes
• Dioptre adjustment on both tubes and interpupillary distance adjustable from 55 to 75 mm
• 0.5x to 5.5x zoom objective: 5x to 55x magnification, field of view from 38 mm to 3.9 mm and 100 mm working distance
• Ergonomic pillar stand with a maximum object height of 193 mm
• Includes black/white stage plate, transparent plate and 2 specimen clips
• 3 W incident and transmitted LED illumination with internal power supply
• Intensity of both illuminations adjustable separately
• Paintwork with antibacterial protective coating
• Supplied with a dust cover in a polystyrene box
