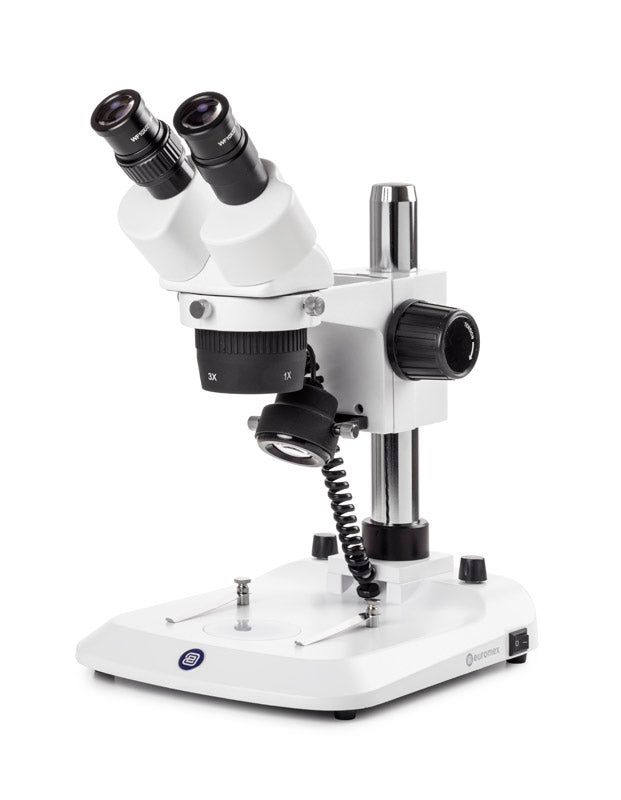

Binocular Stereo Microscope SB.1302-P

Euromex StereoBlue Microscope

The Euromex BlueLine offers a range of high-quality stereo models, designed specifically for use in laboratories and in higher education.
StereoBlue microscopes are specially developed for laboratory applications and for teaching, and are highly valued by biologists, entomologists, geologists, mechanical and electronic engineers and other professionals such as jewellers or dental technicians. These microscopes are available with dual objectives or with a zoom objective for magnifications from 2.1x to 135x (with optional accessories), and they feature incident and transmitted LED illumination.

StereoBlue Microscope Technical Specifications

EYEPIECES
Pair of WF10x / 21 mm eyepieces secured with rubber eyeguards

HEAD
• Binocular or trinocular head with 45º inclination
• Dioptre adjustment on both eyepiece tubes, except models SB.1302-P / 1402-P / 3903-P and SB.1302 / 1402 / 3903, which have dioptre adjustment on one eyepiece tube
• Interpupillary distance adjustable between 55 mm and 75 mm • The trinocular head is supplied with a fixed light path beam splitter (50:50)
All optics are coated with an anti-fungal and anti-reflective treatment for maximum light performance

DUAL MAGNIFICATION MODELS
• Rotating dual objective turret 1x / 3x or 2x / 4x
• Magnifications 10x / 30x or 20x / 40x (can be extended to 120x)
• Field of view 21 mm/6.9 mm or 10.5 mm/5.2 mm
• Working distance 100 mm

ZOOM MODELS
• Parfocal 0.7x to 4.5x zoom stereo objective
• Magnification from 7x to 45x
• Field of view from 29.9 mm to 4.6 mm
• Working distance 100 mm

STANDS
• The rack and pinion or column stands of the StereoBlue Series are fitted with ergonomically designed flat bases, with two specimen clips, a clear stage plate and a white/black stage plate of Ø 60 mm
• The macro focus is fitted with tension control
• The universal stand (single arm) and the double arm stand with a heavy base (-U and -B) have been ergonomically designed and are ideal for viewing large specimens or working under the microscope
• The stands are made of cast metal alloy with an off-white hardened coating

ILLUMINATION
• With dimmable 3 W LED incident and transmitted illumination that can be used simultaneously or separately
• Models SB.3903 and SB.3903-P come with a 30 LED incident ring light and 3W LED transmitted illumination
• SB.1902-U, SB.1903-U, SB.1902-B and SB.1903-B are supplied without illumination. LED ring lights models LE.1973 and LE.1974 are recommended for these models

PACKAGE CONTENTS
• Models with illumination included are supplied with a power cable, dust cover, rubber eyeguards, a spare fuse, clear and white/black opaque stage plates of Ø 60 mm and user manual
• All packed in a polystyrene box. Models -U and -B are supplied with a dust cover, rubber eyeguards and user manual
