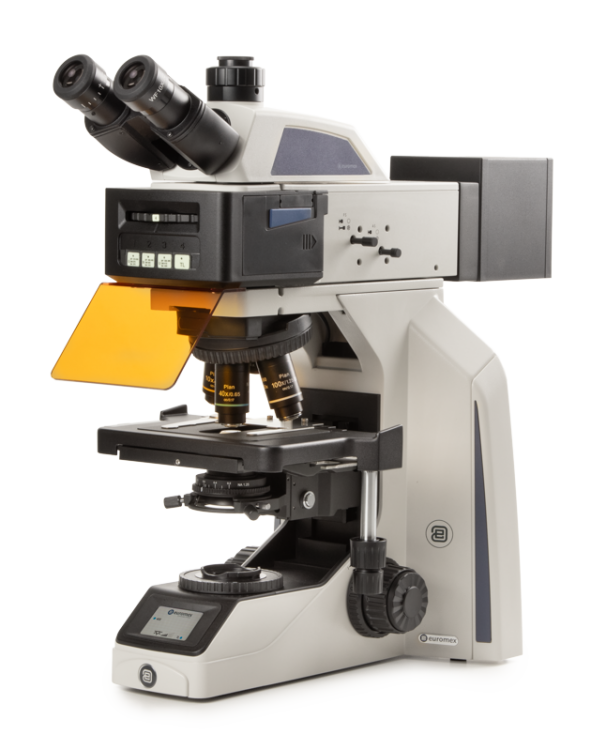

Achios-X Observer Fluorescence Binocular Microscope AX.3152-APLi

Achios-X Observer fluorescence

The Achios-X Observer fluorescence is the version of the Euromex laboratory range designed for routine fluorescence in life sciences, without giving up brightfield with 3 W NeoLED Köhler illumination. The AX.3152-APLi combines a Siedentopf binocular head, APLi plan semi-apochromatic objectives from 4x to 100x with oil immersion, and an LED fluorescence module with a rotating turret and three excitation wavelengths (UV 365 nm, blue 485 nm and green 525 nm). A very complete configuration for anyone looking for LED fluorescence with high-end optics at a reasonable price.

Technical specifications

• EWF 10x/22 mm eyepieces
• Siedentopf binocular head inclined at 30°, interpupillary distance from 47 to 78 mm and dioptre adjustment on both eyepieces
• Inverted ball-bearing quintuple nosepiece
• APLi plan semi-apochromatic objectives 4x/0.13, 10x/0.30, S40x/0.75 and S100x/1.4 oil immersion, 60 mm parfocal
• Optics with anti-fungus and anti-reflection coating for maximum light transmission
• Rackless stage of 238 x 155 mm with integrated mechanical stage of 79 x 55 mm
• Height-adjustable Abbe condenser
• Coaxial coarse and fine focusing: 200 divisions, 1 µm precision, 0.2 mm per revolution and a travel of approximately 30 mm
• Focus stop to protect slides and objectives, with friction adjustment
• 3 W NeoLED Köhler transmitted illumination, adjustable, with external power supply of 100-240 V AC / 5 V DC 2 A (CE)
• LED fluorescence module with rotating turret and UV protection shield
• Includes 3 excitation LEDs: blue 485 nm, green 525 nm and UV 365 nm
• Long-pass filter sets: EX 460-495 DM 505 EM 510 LP, EX 510-550 DM 570 EM 575 LP and EX 330-385 DM 410 EM 420 LP
• Smart Light Control (SLC): stores the intensity for each objective, NeoLED colour temperature from 3,200 to 7,000 K, LCD screen showing magnification and intensity, lock and sleep timer to save energy
• Cable and power supply storage system (CSS)
• Includes mains cable, spare fuse of 500 mA 250 V, 5 ml of immersion oil and dust cover, in a polystyrene box
