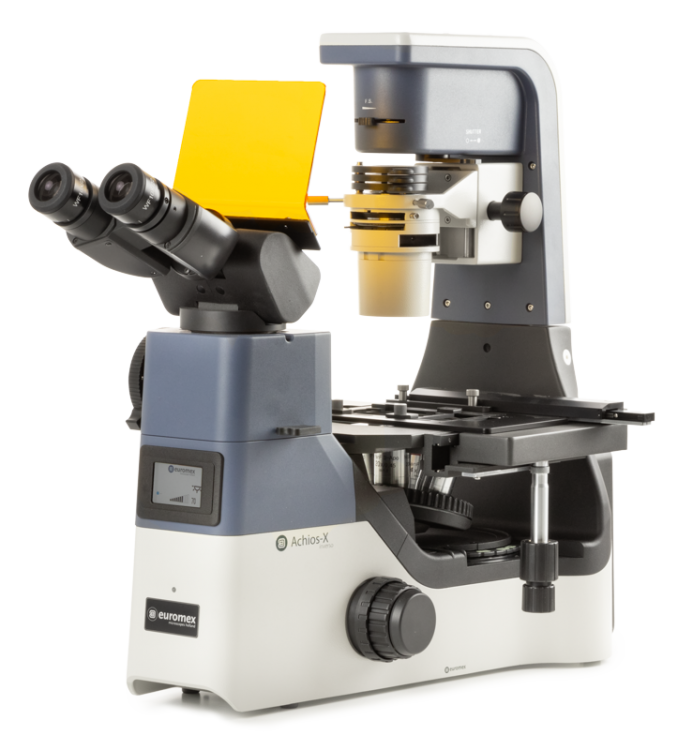

Achios-X Inverso AI.4058-PLFi Inverted Binocular Microscope

Achios-X Inverso fluorescence

The Achios-X Inverso fluorescence microscope is the Euromex inverted microscope designed for life sciences, such as the observation of live cells and tissue cultures, with an Ergo head that tilts from 5° to 35° to make long working sessions easier. The AI.4058-PLFi combines PLFi Fluarex Plan Semi-Apochromatic objectives (4x, 10x, 20x and S40x), LED epifluorescence at 365, 485 and 525 nm and phase contrast rings for 10x, 20x and 40x, all in a very complete instrument for its price.

Technical specifications

• HWF 10x/22 mm eyepieces, Ø 30 mm, with dioptre adjustment
• Ergo binocular head tilting from 5° to 35°, interpupillary distance from 48 to 75 mm and optional side photo port (100-0/0-100)
• Inverted quintuple nosepiece on ball bearings
• PLFi 4x, 10x, 20x and S40x Fluarex IOS Plan Semi-Apochromatic objectives, corrected for 1.2 mm glass, with M25 thread
• Anti-fungus and anti-reflective optical coatings for maximum light transmission
• 170 x 250 mm stage with 128 x 80 mm X-Y mechanical stage
• Coaxial coarse and fine focusing: 200 divisions, 1 µm precision, 0.2 mm per revolution and tension adjustment
• NA 0.30 condenser with iris diaphragm and filter holder, with a slider for phase contrast rings for 10x, 20x and 40x objectives
• Working distance of 75 mm (187 mm without condenser); the condenser can be removed to work with multilayer culture flasks
• Illumination column that tilts backwards
• LED epifluorescence with 365, 485 and 525 nm LEDs and UV protective shield
• Long-pass filter cubes: blue excitation (EX 460-495 nm, BS 505 nm, EM 510 nm LP), green (EX 510-550 nm, BS 570 nm, EM 575 nm LP) and UV (EX 330-385 nm, BS 410 nm, EM 420 nm)
• 3 W NeoLED Köhler transmitted illumination with adjustable intensity and internal 100-240 V power supply (CE), fuse 500 mA 250 Vac
• LCD screen with iCare energy-saving function and memory for light intensity and magnification
• Includes universal metal holder for Petri dishes, glass plate and mains cable
