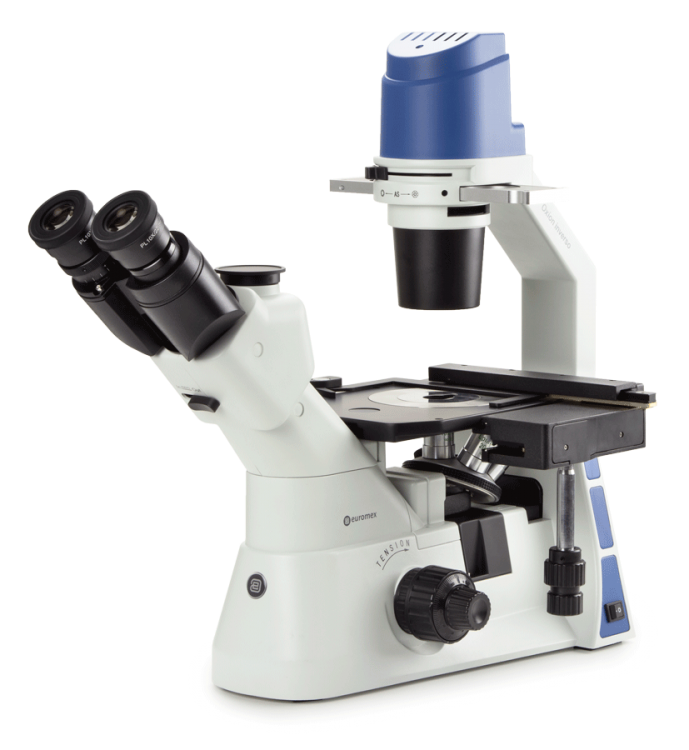

Oxion Inverso OX.2053-PLPH-ICSI Trinocular Inverted Microscope

Oxion Inverso (and fluorescence)

The Oxion Inverso is the Euromex inverted biological microscope for observing living organisms and tissue cultures in plates and flasks, with long working distance IOS objectives that compensate for the base of Petri dishes. The OX.2053-PLPH-ICSI is the trinocular version with 10x, 20x and S40x plan phase contrast objectives, 5 W NeoLED illumination and a micromanipulator for intracytoplasmic sperm injection (ICSI), all with excellent value for money.

Technical specifications

• Pair of HWF 10x/22 mm eyepieces
• Trinocular head with 45° inclined tubes, which can be set in a high or low position
• Interpupillary distance from 54 to 75 mm and dioptre adjustment on the left eyepiece
• Inverted quintuple nosepiece on bearings
• PLPH 10x, 20x and S40x IOS plan phase contrast objectives
• Optics with anti-fungus and anti-reflective coating for maximum light transmission
• 250 x 230 mm stage with 120 x 78 mm mechanical stage
• Includes glass insert with 30 mm hole, metal insert with 25 mm hole, metal insert for 35 mm Petri dish holder, 76 x 26 mm slide holder with 54 mm Petri dish holder, and multiwell plate holder with 65 mm Petri dish holder
• Coaxial coarse and fine focusing: 2 µm precision, 0.2 mm per revolution and total travel of approximately 25 mm
• Includes metal insert for 35 mm Petri dishes and Terasaki holder
• Condenser with N.A. 0.30 with iris diaphragm and filter holder, working distance of 72 mm
• Slider with phase contrast rings and green filter
• 5 W NeoLED transmitted illumination, adjustable, with internal 100-240 V power supply (CE)
• Includes mains cable and carrying case
• Supplied with a micromanipulator for intracytoplasmic sperm injection (ICSI)
