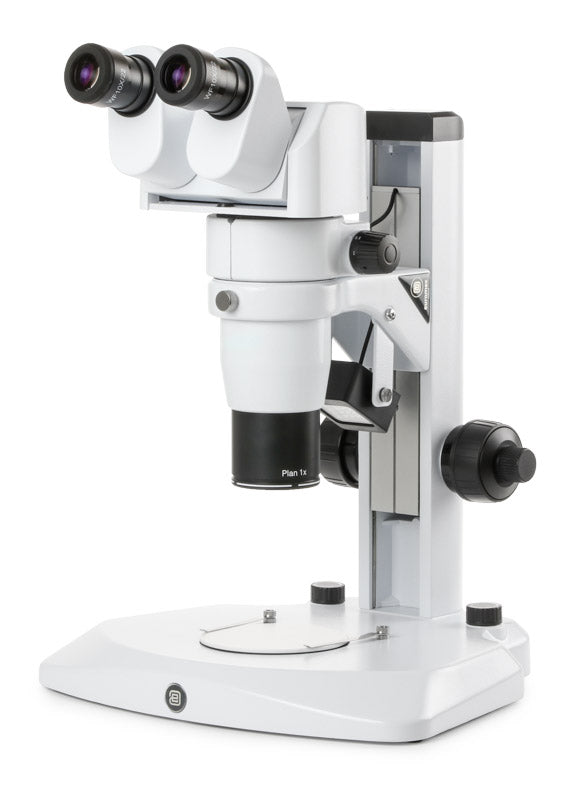

DZ Binocular Stereo Microscope DZ.1600

DZ Series

The DZ.1600 is a stereo microscope from the modular Euromex DZ series, combining ergonomics and high-resolution optics for everyday work in laboratories and universities. It offers a 1:6.3 zoom with magnification from 8x to 50x, a binocular head with a variable inclination between 0 and 35° and a generous working distance of 78 mm. Its ergonomic stand integrates 3 W LED incident and transmitted illumination with independent control.

Technical specifications

• Pair of EWF 10x/22 mm high eyepoint wide-field eyepieces, fixed in place and fitted with eyeguards
• Ergonomic binocular head with tubes inclinable from 0 to 35° and dioptre adjustment on both tubes
• Interpupillary distance adjustable from 55 to 75 mm
• Zoom objective from 0.8x to 5x, magnification from 8x to 50x
• Field of view from 27.5 mm to 4.4 mm and working distance of 78 mm
• Ergonomic stand with coarse and fine focusing, stage plate and 2 specimen clips
• 3 W LED incident and transmitted illumination with internal power supply
• Intensity of both illuminations adjustable separately
• Supplied with a dust cover in a polystyrene box
