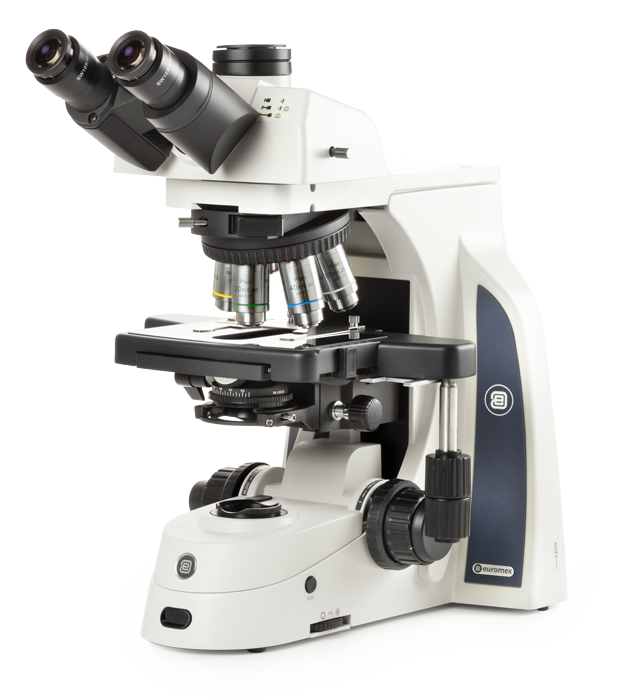

Delphi-X Observer DX.1156-PLi/2 Multi-Head Microscope for 2 Observers

Delphi-X Observer

The DX.1156-PLi/2 is a multi-head system from the Delphi-X Observer series that allows two people to view the same slide, seated side by side: one trinocular head and one binocular head with SWF 10x/25 mm eyepieces. It is fitted with five PLi EIS plan objectives from 4x to 100x on a sextuple nosepiece, a very complete option for training, teaching and joint consultation in pathology. It also features a stage with Gorilla™ glass, 3 W NeoLED illumination and an iCare sensor that switches the light off when the user leaves the microscope.

Technical specifications

• Side-by-side multi-head system for 2 observers
• One trinocular head and one binocular head with Ø 30 mm tubes inclined at 30° and SWF 10x/25 mm eyepieces
• Interpupillary distance from 47 to 78 mm with dioptre adjustment on both eyepieces
• Inverted sextuple nosepiece on ball bearings
• PLi IOS plan objectives 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion, EIS 60 mm parfocal, M25 thread
• All optics with anti-fungus and anti-reflective coating for maximum light transmission
• 190 x 152 mm stage with integrated 80 x 54 mm mechanical stage and scratch-resistant Gorilla™ glass
• Swing-out Abbe condenser NA 0.90/1.25, height adjustable and with engraved numerical apertures
• Coaxial coarse and fine focusing with 100 divisions: 1 µm precision, 0.1 mm per rotation and a total travel of approximately 35 mm
• Focus stop to protect slides and objectives, with friction adjustment
• Adjustable 3 W NeoLED transmitted illumination, with internal 100-240 V power supply (CE)
• iCare sensor: the illumination switches off automatically when the user moves away from the microscope, to save energy
• Carrying handle at the back and Allen key in integrated holder
• Includes power cable, spare 500 mA 250 V fuse, 5 ml of immersion oil, dust cover and user manual, in a cardboard box
