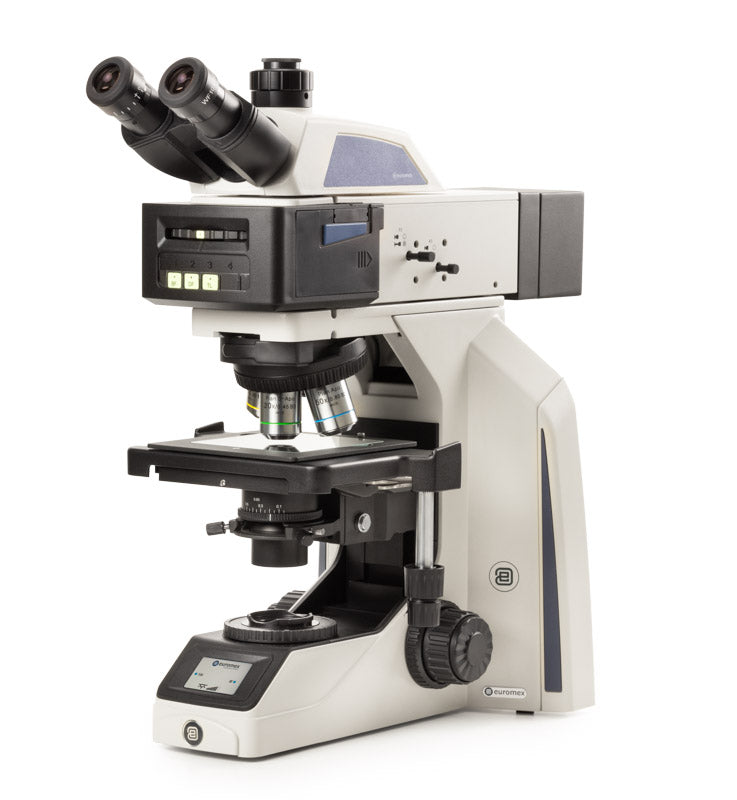

Trinocular Microscope Achios-X Observer Metallurgical AX.1053-APLMRi

Achios-X Observer metallurgical

The Achios-X Observer metallurgical microscope is the Euromex version for advanced materials research, with 22 mm field-of-view eyepieces and semi-apochromatic and apochromatic optics that deliver excellent colour fidelity and high resolution. The AX.1053-APLMRi is the trinocular configuration with SAMPLi 5x, 10x and 20x and APLi 50x brightfield and darkfield objectives. It combines 3 W NeoLED Köhler reflected and transmitted illumination with smart light control, and includes a polariser and analyser.

Technical specifications

• EWF 10x/22 mm eyepieces, Ø 30 mm
• Siedentopf trinocular head, inclined at 30° (50:50 light split), interpupillary distance from 47 to 78 mm and dioptre adjustment on both eyepieces
• Inverted quintuple nosepiece on ball bearings with grip ring
• Semi-apochromatic plan objectives SAM-PLi 5x/0.10, 10x/0.25 and 20x/0.45 and apochromatic plan objective APLi 50x/0.80, IOS 45 mm parfocal, brightfield and darkfield, M26 thread
• Optics with anti-fungus and anti-reflection coating for maximum light transmission
• Rackless stage of 238 x 140 mm with integrated mechanical stage of 78 x 54 mm
• Height-adjustable Abbe condenser
• Coaxial coarse and fine focusing: 200 divisions, 1 µm precision, 0.2 mm per revolution and a travel of approx. 30 mm
• Focus stop to protect slides and objectives, with friction adjustment
• Dimmable 3 W NeoLED Köhler transmitted (diascopic) illumination, with external power supply 100-240 V AC / 5 V DC 2 A (CE)
• 3 W NeoLED Köhler reflected (incident) illumination
• Smart light control (SLC): stores the intensity for each objective, colour temperature from 3,200 to 7,000 K, LCD display showing magnification and intensity, lock and standby timer to save energy
• CSS system for storing the cable and power supply
• Includes power supply, polariser and analyser, user manual, universal tool and dust cover, packed in a polystyrene box
