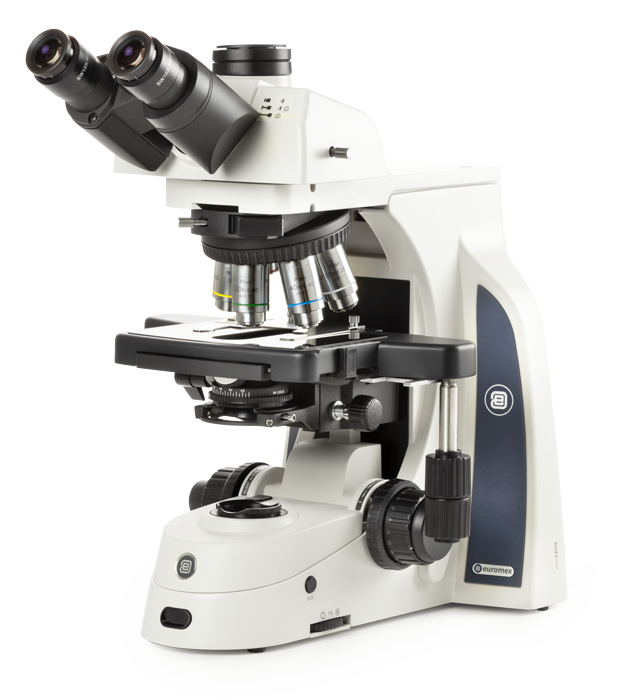

Delphi-X Observer DX.2053-PLi Trinocular Microscope

Delphi-X Observer

The Delphi-X Observer is the advanced Euromex series for life sciences: 25 mm field of view, 60 mm parfocal EIS plan objectives and high-resolution colour reproduction. The DX.2053-PLi is the trinocular version with a three-position beam splitter, 4x, 10x, 20x and S40x objectives and 100 W halogen illumination, designed for pathologists who need to observe and document.

Technical specifications

• SWF 10x/25 mm eyepieces
• Siedentopf trinocular head inclined at 30° with Ø 30 mm tubes, interpupillary distance of 47 to 78 mm and dioptre adjustment on both eyepieces
• 3-position beam splitter (0:100 / 100:0 / 80:20)
• Inverted sextuple nosepiece on ball bearings
• PLi plan objectives 4x/0.10, 10x/0.25, 20x/0.40 and S40x/0.65 IOS, 60 mm parfocal EIS, M25 thread
• Anti-fungus and anti-reflective optical coating for maximum light transmission
• 190 x 152 mm stage with integrated 80 x 54 mm mechanical slide holder and scratch-resistant Gorilla™ glass
• Abbe condenser, swing-out and height-adjustable, N.A. 0.90/1.25, with engraved numerical aperture
• Coaxial coarse and fine focusing: 100 divisions, 1 µm precision, 0.1 mm per revolution and a travel of approx. 35 mm
• Focus stop to protect slides and objectives, with friction adjustment
• Adjustable 100 W halogen transmitted illumination, with internal 100-240 V power supply (CE)
• iCare sensor: the light switches off automatically when the user moves away from the microscope, to save energy
• Carrying handle at the back and Allen key in an integrated holder
• Includes mains cable, spare 500 mA 250 V fuse, 5 ml of immersion oil, dust cover and user manual, in a cardboard box
