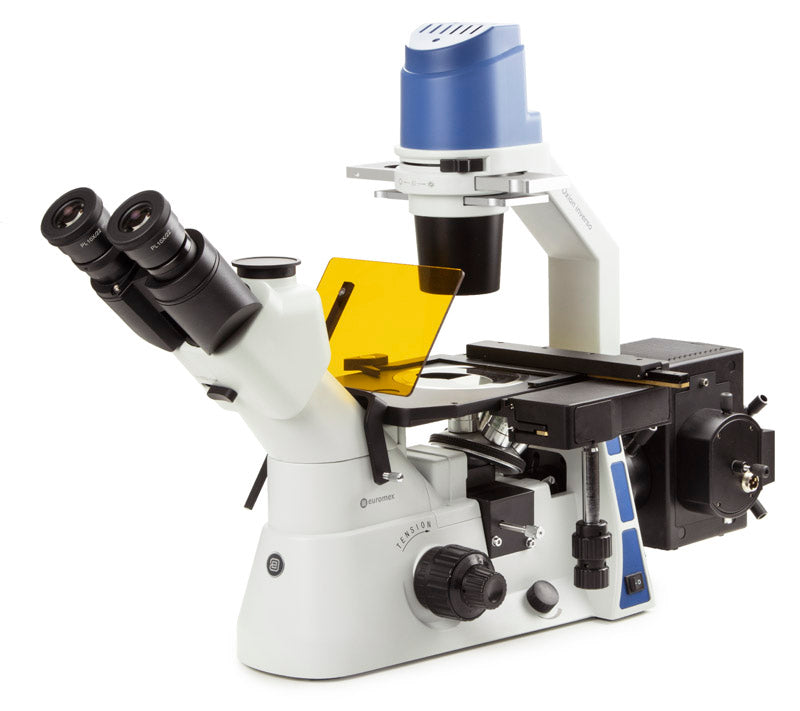

Oxion Inverso OX.2253-PLPHF Trinocular Inverted Microscope

Oxion Inverso (and fluorescence)

The Oxion Inverso is the Euromex inverted-stage biological microscope for observing living organisms and tissue cultures in culture plates and flasks, with IOS objectives that compensate for the 1.2 mm base of the plates. The OX.2253-PLPHF is the trinocular version for epifluorescence, phase contrast and brightfield: 100 W mercury lamp, 5 W NeoLED illumination and two filter blocks, blue and green, included.

Technical specifications

• Pair of HWF 10x/22 mm eyepieces
• Trinocular head with 45° inclined tubes, which can be set in a high or low position
• Interpupillary distance from 54 to 75 mm and dioptre adjustment on the left eyepiece
• Inverted quintuple nosepiece on ball bearings
• IOS infinity-corrected objectives: Fluarex plan 10x and Fluarex PLPH phase contrast plan 20x and S40x
• Optics with anti-fungus and anti-reflection coating for maximum light transmission
• 250 x 230 mm stage with 120 x 78 mm mechanical stage
• Includes glass insert with 30 mm opening, metal insert with 25 mm opening, metal insert for 35 mm Petri dishes, 76 x 26 mm slide holder with holder for 54 mm Petri dishes and multiwell holder with holder for 65 mm Petri dishes
• Coaxial coarse and fine focusing: 2 µm precision, 0.2 mm per revolution and a total travel of about 25 mm
• N.A. 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm
• Includes slider with phase contrast rings and green filter
• Fluorescence with 100 W mercury vapour lamp and 5 W NeoLED illumination for brightfield and phase contrast, internal 100-240 V (CE) power supply and UV protection shield
• Slider for 2 filter blocks and brightfield position
• Includes 2 standard filter blocks: blue (EX465-495 DM505LP EM515-558) and green (EX500-580 DM600LP EM605-665)
• Includes mains cable and carrying case
